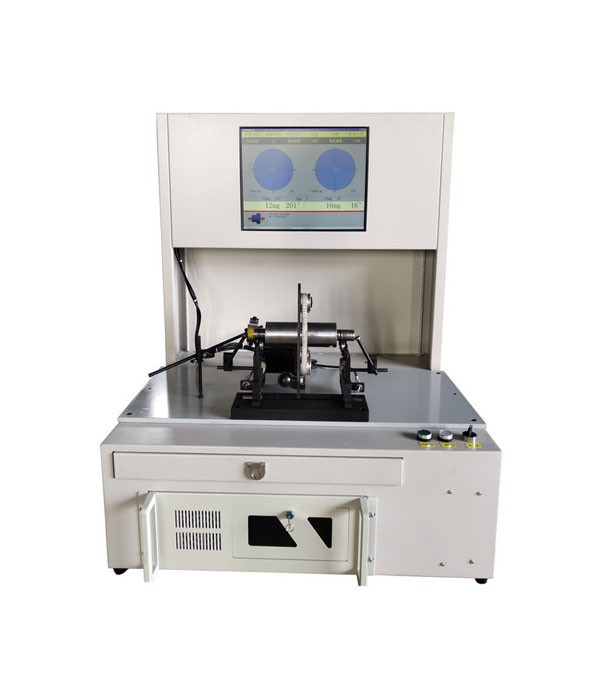

YYQ-1(3)Type D balancing machine

  • product name: YYQ-1(3)Type D balancing machine
  • Product categories: Automatic positioning balancing machine
  • company name: Jinan bodihao machinery equipment co. LTD
  • Add the time: 20/01/12
Product details
Make an inquiry


Product details

1. Introduction of YYQ-1 (3) D balancing machine

Yyq-1 (3) D is a horizontal double-sided dynamic balancing machine with hard support driven by ring belt. The product adopts roller support and ring belt dragging. Meanwhile, it adopts servo motor to control the operation of equipment and the quasi-stop positioning of Angle. The product solves the problem of manual Angle finding when the belt balancing machine is balanced, greatly improves the weight removal rate and balance efficiency of the equipment, and is more suitable for the factory to batch production.

2. Measurement system

industrial control computer, 17 "LCD display (according to customer needs with a touch screen), Windows operating platform

with the company's independent development of the balance of the automatic positioning function of the special measurement system. Software functions cover all the functions of domestic mainstream balancing machine software; After the software sets the balance speed, the software controls the equipment to automatically reach the set speed without manual intervention

the motor starts to measure the speed and the software automatically starts to measure, the measurement completed software control servo motor left unbalance phase point in the designated position, press the command button servo motor will put the right unbalance phase point in the designated position

measuring system performance is strong: arbitrary workpiece calibration, measuring speed block, unbalance amplitude and phase stability, high deweighting and separation ratio, high sensitivity

software with allowable unbalance calculator, the operator only needs to input the allowable vibration of the workpiece precision level, mass, working speed, and radius click to calculate the number of grams to allow the remaining unbalance of the workpiece

software completely independent development, according to customer requirements to modify or add software functions (such as scanning the two-dimensional code to add the workpiece identity name to the measurement results to save for future quality investigation)

3. Mechanical parts and controls

swing frame by line cutting and matching processing, consistency and rigidity.

the double motor belt wheel configuration can avoid the belt pulley and the workpiece may produce the same frequency interference.

the ring belt adopts the pressure type structure, the belt hangs on the tight mechanism, the upper and lower workpiece without hanging the belt, convenient and fast.

ipc and PLC control servo motor running, speed software control, soft start soft stop

Note: please contact us for more information about the equipment

Manufacturer standard configuration parameters

Device model yyq-1d yyq-3d

The workpiece mass range is kg 0.05-1 0.1-3

The maximum diameter of the workpiece is mm 260 260

Two support spacing mm 50-260 50-260

The diameter range of the belt dragging place is mm 15-80 15-80

Support shaft diameter mm 4-17 4-17

Balance speed r/min when the drag is 50mm in diameter, 400-3000 when the drag is 50mm in diameter, 400-3000

Minimum residual unbalance 0.3 GMM /kg 0.3 GMM /kg

Unbalance reduction rate % > 90% > 90%

Measuring time 10S (related to measuring speed and setting period)

Servo motor power 0.4kw 0.4kw

Speed regulation mode software control software control

Transmission mode ring belt ring belt

Single-phase AC 220V, 50/60hz single-phase AC 220V, 50/60hz

the above is the factory's standard configuration equipment parameters, we support the product, system according to the customer's demand on the length of the equipment, the roller support workpiece shaft diameter range to do equipment structure allows reasonable changes

the device can be uneven marking function

equipment can be driven by belt - cutting

equipment can be added without affecting the measurement of performance of reasonable accessories, such as protection
