1. YYW series product introduction

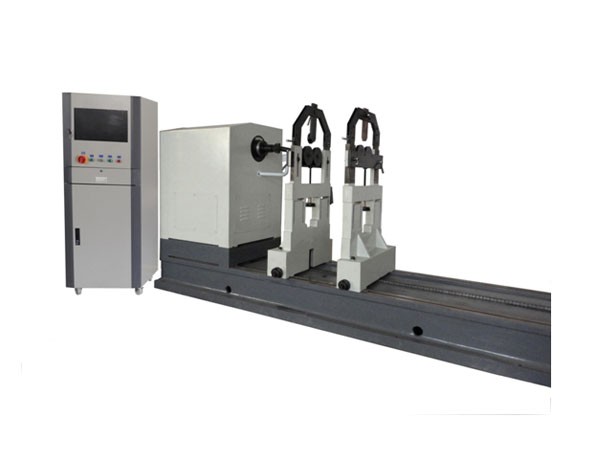

YYW series is universal coupling drive universal hard supported horizontal double-sided dynamic balancing machine, the equipment model covers the measurement range from a few kilograms to more than 50 tons. This series of equipment suitable for regular or irregular shape workpiece, workpiece surface smooth or surface of all kinds of parts, the fan impeller and knife a thorn centrifuge drum air damping moment of inertia and artifacts such as measurement, dynamic balancing is widely used in electric motors, generators, blower, motor, agricultural machinery, textile machinery, chemical industry, woodworking machinery, paper machinery and other industries, can be in the single side, double side and multiple correction surface balance measurement, suitable for shaft, disc and center of gravity overhung rotor. It has the advantages of high efficiency, accurate precision, intuitive display and reliable quality.
2. Measurement system
Taiwan industrial control computer, 19 inch LCD (can be customized with touch screen), Windows operating platform
★ with the company's independent development of balance measurement system. General software functions cover all the functions of the domestic mainstream balancing machine software, the operation of all the use of Chinese menu structure, operating steps text prompt; Special software includes: all kinds of automatic balancing machine software, with the function of Angle tracking software, with the function of automatic positioning software, transmission shaft multi-axis joint school software
★ measuring system performance is strong: arbitrary workpiece calibration, measuring speed range wide 80 RPM starting, measuring speed block, unbalance amplitude and phase stability, high deweighting rate and separation ratio, high sensitivity
★ software with allowable unbalance calculator, the operator only needs to input the allowable vibration of the workpiece precision level, mass, working speed, and radius click to calculate the number of grams of allowable remaining unbalance of the workpiece
★ software completely independent development, according to customer requirements to modify or add software functions (such as scanning the two-dimensional code to add the workpiece identity name to the measurement results to save for future quality investigation)
3. Mechanical parts and controls
★ swing drive and bed casting, enough rigidity and stability; Swing driving resistance to static pressure is strong, under the premise of sufficient device drive capacity can generally overload more than 20%
★ the roller on the balance machine is made of bearing steel, the overall salt bath quenching hardness reached HRC55 above; After grinding the support surface of the roller, the radial run-out is small and the precision roller bearing is matched to make the workpiece run more smoothly and the interference to the measurement signal is lower
★ universal joint precision machining, and through the concentric correction and balance. In this way, the influence of universal joint on the balance of workpiece is greatly reduced, and the precision of workpiece balance is guaranteed.
★ swing frame can move along the bed and can be parked in any part of the bed above, so the equipment can balance between the longest and the shortest arbitrary length of the workpiece.
★ universal coupling mounting synchronous rotation scale mark, easy to find the Angle of unbalance.
★ reliable quality of equipment, the use of frequency conversion speed control system, motor soft start soft stop on the impact of the equipment is small, extended the service life of the equipment. Equipment can work continuously, maintenance is simple and convenient
★ above for the factory standard configuration equipment parameters, we support the product, system according to the customer's demand for the maximum diameter of the equipment, the maximum effective length, the roller support workpiece shaft diameter range (such as can be expanded to 120-240) to do the corresponding changes
★ the device can add Angle tracking function
★ equipment can be added without affecting the measurement of performance of reasonable accessories, such as protection and weight removal device
